เครื่องมือตรวจจับแก๊สแบบพกพา และติดตั้ง

http://www.tarad.com/sensor/

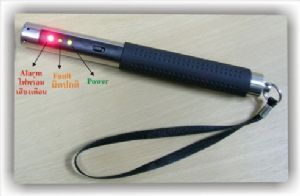

เครื่องมือตรวจจับแก๊สแบบพกพา

Portable GAS Detector
- Fast response
- High sensitivity
- Low consumption
- Reliable performance
- Simple operation

Technical Data
1). Detecting gas:
- Flammable gas, such as methane, LPG, coal gas, alkyne, etc.
- Liquid steam, such as alcohol, acetone, toluene, petrol, etc.
2). Detecting Range: 0 ~ 100% LEL
3). Sampling: Diffuse naturally
4). Working Conditions: Tem: -10~40 C , Hum: <98%RH
5). Working Voltage: DC3V (2pc 1.5 VAA battery), Battery Working Life: 5 Hours
6). Working Current: <170mA, Fault Alarming: < 180mA
7). Alarming level: Low: 10%LEL, High: 30%LEL
8). Alarming Indication: Sound > 40 db and visual alarming
9). Response time: <20sec; Resume Time: <30sec
10). Weight: about 150g, SIZE: 183mm x 18mm


เครื่องมือตรวจจับแก๊สแบบติดตั้ง

แถมที่เป่าปาก มูลค่า 490 บาท

Power supply: DC12V or DC24V Consumption: &#8804;3W
Working condition: Tem. 0&#8451;&#65374;55&#8451; Humidity: &#65308;95%RH
Warm up time: 3min&plusmn;30s
Alarm type: Sound and light Sound level: &#8805;85dB
Signal output: Free contact or DC9V relay output
Life: &#65310;5 years
Weight: Appr. 150g
Dimensions: L&times;W&times;H 107mm&times;95mm&times;50mm
