Printer TSC345

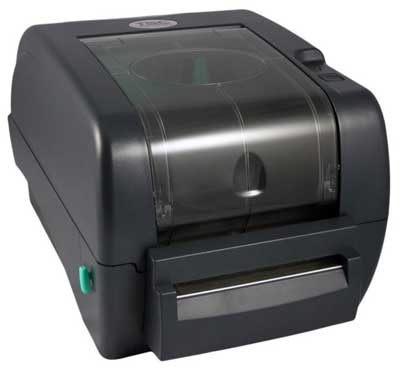

TSC TTP-345 Bar Code Printer Specifications

Resolution
300 dpi

Printing Method
Thermal Transfer and Direct Thermal

Print Speed
2, 3, 4, 5 ips selectable
2ips selectable with peel function

Max Print Width
106mm ( 4.17 " )

Max Print Length
1, 016mm ( 40 " )

Enclosure
Double-walled plastic

Physical Dimensions
314mm L x 213mm W x 188mm H
12.36 " L x 8.39 " W x 7.40 " H

Ribbon Capacity
300 meter, 1 " core

Label Roll Capacity
127mm ( 5 " ) OD

Processor
32-bit RISC high performance processor

Memory
4MB Flash memory
8 MB SDRAM
SD card reader for memory expansion, up to 4GB

Interface
RS-232 ( max. 115, 200 bps)
Centronics
USB 2.0 ( full speed mode)

Power
AC Input: 100-240V univarsal switching power supply
DC output: 24V 3.75A ( external adaptor)

Operation Switch, Button
One power switch, one feed button & one LED ( 3 colors)

Sensors
Gap transmissive sensor ( offset 6 mm from liner edge)
Moveable black mark reflective sensor
Head open sensor
Ribbon end sensor

Internal Font
Eight alpha-numeric bitmap fronts
One Monotype Imaging CG Triumvirate Bold Condensed scalable font
Built-in Monotype True Type Font engine

Bar Code
1D bar code
Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 ( 5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, RSS14, Code 11
2D bar code
PDF-417, Maxicode, DataMatrix, QR Code, Aztec

Font and Barcode Rotation
0, 90, 180, 270 degrees

Printer Language
TSPL-EZ™

Media Type
Continuous, die-cut, black mark, fanfold, notch

Media Wound Type
Outside wound

Media Width
20 to 112mm ( 0.78 " to 4.4 " )

Media Thickness
0.06 to 0.19mm ( 2.3 to 7.4mil) , max 150 g/ m

Media Core Diameter
25.4 to 76.2 mm ( 1 " to 3 " )

Label Length
Min. 10mm ( 0.4 " )

Label Length ( peeler mode)
25.4 to 152.4mm ( 1 " to 6 " )

Label Length ( cutter mode)
25.4 to 1, 016mm ( 1 " to 40 " )

Environment Condition
Operation: 5~ 40C ( 41~ 104F) , 25~ 85% non-condensing
Storage: -40~ 60C ( -40~ 140F) , 10~ 90% non-condensing

Safety Regulation
FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TUV/ Safety, CCC

Accessories
Windows labeling software CD disk
Quick start guide
USB cable
External universal switching power supply
Power cord
Label spindle, fixing tab x 2, 1.5“ core adapter x 2
Ribbon spindle x 2
Ribbon rewind spindle paper core

Factory Option
Real time clock
Main board integrated with internal Ethernet

Dealer Option
Peel off module assembly
Guillotine cutter
- Full cut: Paper thickness: 0.06~ 0.19 mm, 500, 000 cuts
- Partial cut:
-- Paper thickness: 0.06~ 0.12 mm, 500, 000 cuts
-- Paper thickness: 0.19 mm, 200, 000 cuts

User Option
Keyboard display unit ( KU-007 Plus and KP-200 Plus)
Long range linear imaging bar code scanner ( HCS-200)
External roll mount, media OD. 214 mm ( 8.4” ) on a 1” or 3” core
3” core label spindle
Bluetooth module
